Seoil Pacific Corp.
Device
CF10
| Common name | High flow heated respiratory humidifier |
| Trade name | COMFORT HI-FLOW |
| Model name | CF10 |
| Manufacturer | SEOIL PACIFIC CORP. |
The COMFORT HI-FLOW (Model: CF10) are for the treatment of spontaneously breathing patients who would benefit from receiving high flow warmed and humidified respiratory gases. The flow may be from 2 -60L/min depending on the patient interface. The COMFORT HI-FLOW (Model: CF10), is intended for use in hospitals, long-term care facilities, and homes.
Introduction video
Features
1) Temperature control
The device allows the operator to set the dew point temperature for "ADULT Mode 31, 34, and 37°C" or "JUNIOR Mode 34°C" and is equipped with a highly sensitive temperature sensor that monitors the air temperature delivered to the patient.
The device also has several temperature protection settings to ensure patient safety.

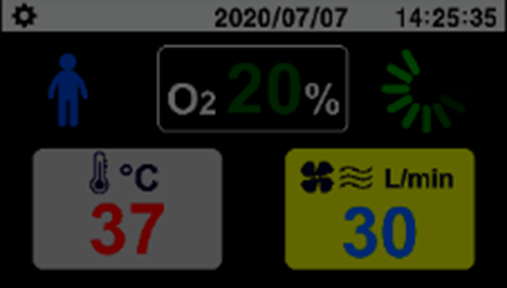

ADULT mode Home screen  | JUNIOR mode Home screen  |
2) Oxygen Concentration control
This device can be used with an additional oxygen supply. The device accurately displays the real-time oxygen concentration of the gas mixture delivered. The user can control the oxygen concentration by adjusting the external oxygen valve. The upper and lower limits of the oxygen concentration alarm are settable to ensure patient safety.
3) Flow rate control
This device allows the operator to set the flow rate from 2 L/min to 60 L/min. The device monitors the flow rate with a built-in highly sensitive flow rate sensor.
4) Mode Control
The device has two operating modes, namely ADULT Mode and JUNIOR Mode.
5) Display and Front Keypad
The device is equipped with an LCD display screen and a row of keys on the front just under the display to make the device easier to control and to provide a clear display of functions and data.
6) Alarms
The device has an auditory alarm function to alert the patient or caregiver when an alarm condition occurs. The auditory alarm is accompanied by an indicator light and relevant information is displayed on the screen.
7) 4.3” Touch Screen
The user-friendly interface makes the device easy to control. Therapy information is displayed on a 4.3” wide LCD screen. The device can be operated using both the touchscreen and the button located below the screen.
8) Sleep(Night) Mode
The sleep mode can be activated with a simple setting, ensuring a comfortable night’s sleep for the patient. It minimizes sleep disruption caused by screen brightness. The "Sleep Type" feature is only available when sleep mode is activated. You can toggle between "Dim" and "Icon" by pressing the button once or by touching the screen.
Normal brightness  | Sleep mode brightness  |
9) Kinking Free Nasal cannula (Patented)
Qualified silicon and its ergonomic design maximize the patient comfort.
Kinking free Nasal cannula prevents stopping therapy by accident.
10) Disinfection Free
Since the air flows in one direction, the percentage of infection is low.
No need to disinfection process by replacing the disposable accessories
11) One-way Valve / Check Valve
To prevent an accidental over-flow of water in the chamber
12) Quick Release Tap
Easy to remove the chamber as well as much less damage on the heater plate
Specification
Physical
Dimensions | 280 x 270 x 176mm(W x H x D) |
Weight | 1Set, 2.6kg(without accessories) |
Electrical Spec
Rated Voltage | 200-240V~ | 100-120V~ |
Rated Frequency | 50/60Hz | 50/60Hz |
Rated Power | 270VA | |
Electrical Protection | BF, Class II | |
Degree of Protection | IP22 | |
Mode of Operation | Continuous | |
Device performance Spec
Parameter | Adult Mode | Junior Mode |
Modes of Operation | Adult, Junior | |
Warm-up time | 10minutes to 31°C (88°F), | |
Target temperature settings(°C) | 31°C, 34°C, 37°C | 34°C |
Flow range(L/min(LPM)) | 10 to 60L/min | 2 to 25L/min |
Humidity Output | > 16 mg/L at 37°C target | > 16 mg/L at 34°C target |
Maximum temperature of | 43 °C (109 °F) (in accordance with ISO 80601-2-74) | |
Maximum surface temperature of applied parts | 44 °C (111 °F) (in accordance with ISO 80601-2-74) | |
Oxygen analyzer accuracy | < ±2.5% gas level (within the range 25-95% O2) | |
Humidifier classification per ISO 80601-2-74 | Category 3 | |
